Energy Storage System

Energy Storage System

Energy Storage System

  • The BMS system adopts the single-chip and total-integration solution, which is able to precisely measure and record the key parameters like battery voltage, current and temperature;
  • Equipped with protection of overcharge protection, over-discharge protection and high/low temperature protection;
  • The protective plate is made of special technique, which enables the battery to tolerate ultra-high working current to work in high efficiency;
  • The no-load timing sleep mode and low power consumption management technology successfully reduce the high power consumption, and improve the battery energy utilization;
  • 95% of the charging efficiency reached with the smart charging management technology;
  • The independent design for PACK has guaranteed the excellent performance in heat dissipation, safety and the high reliability to batteries;
  • With I2C, RS458 and communication function;
  • Through production modularization, the segment process and the centralized assembly of the product have been achieved, which effectively improves the capacity and reduces the labor cost.

Image Description
Household appliances
Image Description
Outdoor work
Image Description
Entertainment
Image Description
Emergency rescue

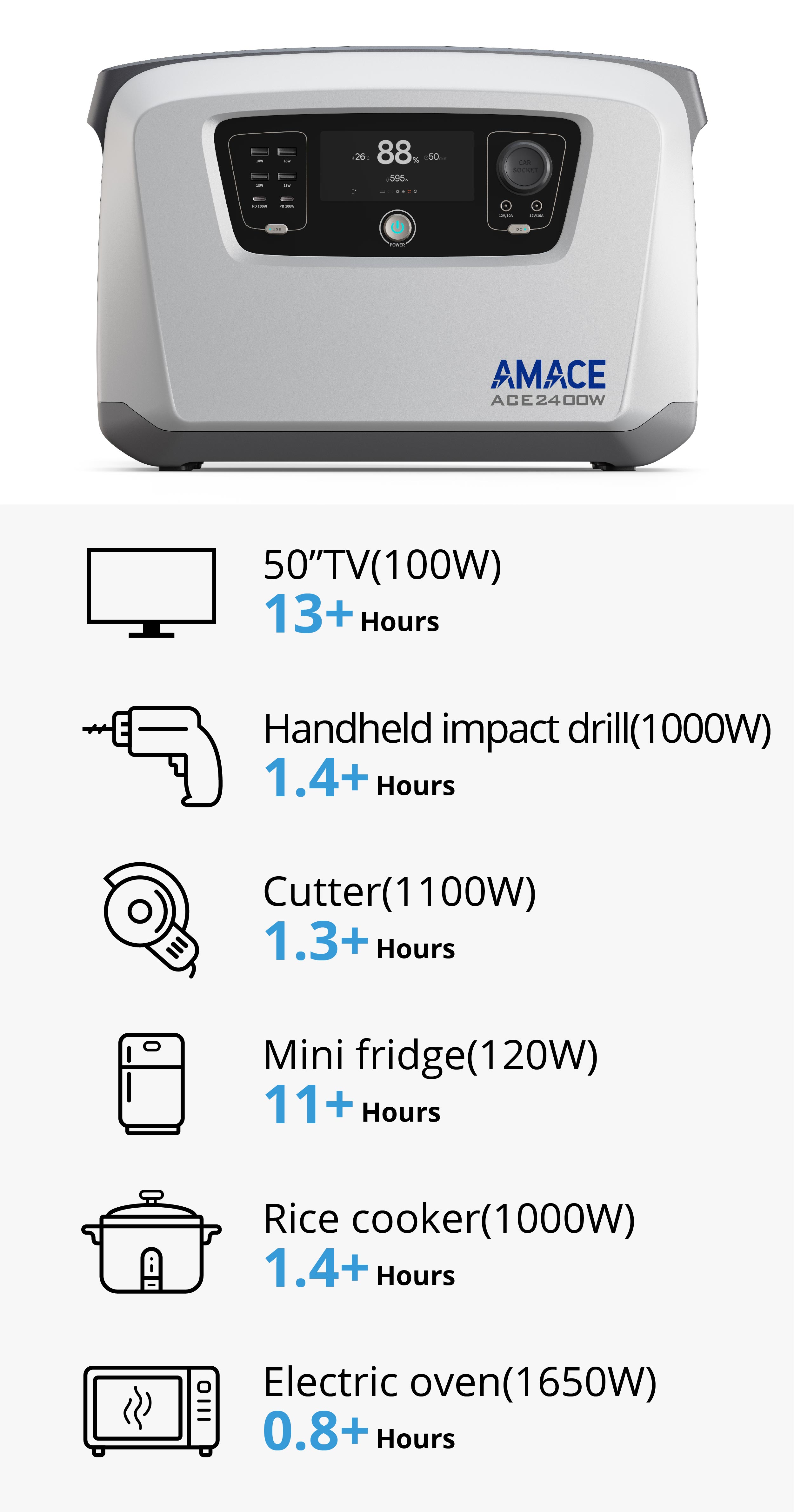

ACE-2400

Image Description
ACE-2400 Specification
Battery Capacity 1792Wh
Inverter Pure sine wave
Input Solar Energy MPPT 600W
AC Charge 1600W(About 1h 70%,1.5h full)
Car Charge 12V/10A
Output AC Continuous Output: 2400W;Peak: 4800W
DC USB-A 18W*4, Type-C 100W*2, 12V Cigarette lighter*1, 12V DC5521*2, 15W Wireless Charge*1
Net Weight 22kg
Size 464*292*315mm
Case Material ABS+PC
Expandability Max 2pcs battery packs can be stacked
Certificates UL, PSE, FCC, UN38.3, MSDS, CE, RoHS
